Project 1: Form & Function:

Expression of Truth/Beauty

Michael Diaz

Student – Architectural Design II

Farmingdale State College

Form and Function

Creative design comes from all around us . This project was to explore different mechanical movements and combine them with existing architecture to come up with trans-formative design ideas. This project is for a movable parts bridge that provides a 30ftx40ft opening for ships to go under.

1)Quebec Bridge

2)Baltimore Truss

3)Francis Scott Key Bridge

Quebec Bridge

first bridge.png

Quebec Bridge Span

q bridge span .png

Baltimore bridge

baltimore truss.png

Baltimore bridge span

baltimore truss span .png

Francis Scott Key Bridge

scott key bridge .png

Francis Scott Key Bridge Span

scott key bridge span .png

Movement Analogies

movement analogies.png

Conceptual combinations table (3X3)

3x3 picture.png

Preliminary Designs

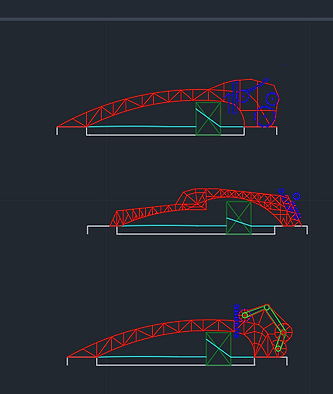

Out of the 18 designs took one bridge and I put three different movement analogies on the bridge I liked and then picked the bridge I like the best.

3 bridge concepts.png

Final Design

final bridge pic one .png

final bridge pic 2 .png

final bridge pic 4 .png

3D Views of the mechanism

spindels zoomed in 2.png

spindels zoomed in 1.png

spindels zoomed in 3.png
